MAGNETS

Magnets

FILTERMAG

These unique special magnetic products are available from SynLube Incorporated and can be used with
SynLube™  MicroGlass™ Oil Filters, as well as in many other applications.

Product Description

The magnets used in FILTERMAG™ are special formulation of Neodymium (the Rare Earth element), Iron, and Boron. These Patented Super Magnets are 10 times stronger than ordinary Ceramic magnets and do not lose their magnetic charge with time or when exposed to heat. The unit consists of several independent hard chromium coated magnets that are of opposite N/S orientation.

Through its strong magnetic force FILTERMAG™ attracts and removes from fluid flow ferromagnetic particles that are too small to be captured by conventional filter media.

Oil filters alone cannot trap these microscopic particles, because conventional cellulose oil filters are designed to capture particles in 60 to 20 micron range.

While SynLube™  MicroGlass® Oil Filters will filter down to 5 micron particle range.

Still particles smaller than 5 micron and as large as 10 micron will remain in circulation and can cause secondary wear.

Finely distributed iron particles of sub-micronic size also act as oxidation co-catalysts and will cause the oil to deteriorate at faster rate.

Magnet Deposits

Accumulated deposits captured by FILTERMAG™ MC300 on the INSIDE of Motor Oil Filter

FILTERMAG™ traps magnetic particles of any size against the interior sidewall of the filter, this in turn extends lubricant service life and reduces wear.

FILTERMAG™ SUPER-STRONG magnets never wear out or lose their magnetic charge, therefore the unit itself is permanent, you will never need to purchase another. When replacing Oil Filter, simply remove the units and install them onto a new filter.

Want to Know MORE ?

Just Click the link below:


  FILTER MAGNETS

SynLube Incorporated is a distributor for FILTERMAG™ products.

FILTERMAG™ powerful rare-earth magnets trap and hold wear-inducing metal particles smaller than 40-microns down to less than 1-micron that the filter element alone cannot stop.

The patented FILTERMAG™ uses several layers of steel on the back to prevent stray magnetic flux, and to focus the magnetic energy onto the inner wall of the filter. It will not interfere with vehicle electronics, will not pick-up debris from the street, or affect electronic signals.

FILTERMAG RA MODELS

These extremely strong Oil Filter Magnets are intended for Racing, Heavy Duty Automotive, and Diesel Applications

The FILTERMAG™RA Series provides extra power for the more demanding needs of large diesel trucks, racing, and heavy duty automotive applications.

FILTERMAG-RA-oil-filter-magnet

RA Series Oil Filter Magnets
MODEL Filter
DIAMETER
Inches
Filter
Diameter
mm
Magnet
Height
Inches
Application PRICE
RA300 2.90−3.20" 73.66 to 81.28 2.625" (Fnl) $84.00*
RA365 3.50−3.80" 86.90 to 96.52 2.625" (Fwl) $97.00*
RA450 4.25−5.50" 107.95 to 139.70 3.0" $114.00*


FILTERMAG SS MODELS

The FILTERMA™ SS Series Oil Filter Magnets are intended for light duty automotive, light truck, and imported motorcycle applications. One of our four models in the SS Series will fit virtually any light duty vehicle or motorcycle.


FILTERMAG SS Oil Filter Magnet


SS Series Oil Filter Magnets
MODEL Filter
DIAMETER
Inches
Filter
Diameter
mm
Magnet
Height
Inches
Application PRICE
SS250 2.50−2.75" 63.50 to 69.85 1.625" Mini Filters $49.00*
SS300 2.90−3.20" 73.66 to 81.28 1.90" (Fns/Fnl) $53.00*
SS365 3.50−3.80" 86.90 to 96.52 2.20" (Fwl/M22wm) $60.00*
SS375 4.25−5.50" 107.95 to 139.70 2.5" (Fwl) $66.00*

FILTERMAG MC MODELS

These Oil Filter Magnets are primarily intended for Motorcycles (Big Twins & Sport Bikes)

The FILTERMAG™ MC Series for motorcycles comes with a polished chrome or flat black facing to complement engine appearance.

The SS250 FILTERMAG™ is designed for imported bikes with small metric Oil Filters.

FILTERMAG MC Oil Filter Magnet

MC Series Oil Filter Magnets
MODEL Filter
DIAMETER
Inches
Filter
Diameter
mm
Magnet
Height
Inches
Application PRICE
MC300 2.90−3.20" 73.66 to 81.28 2.625" (Fns/Fnl) $95.00*
SS300 2.90−3.20" 73.66 to 81.28 2.0" (Fns/J20ns) $53.00*
SS250 2.50−2.75" 63.50 to 69.85 1.625" Mini Filters $49.00*


See PRICE LIST for currently available sizes and pricing.

Price List

ALL Prices include FREE shipping by FedEx Ground or Priority Mail.


UNIMAG

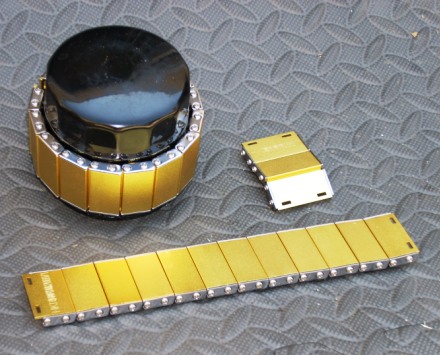

UniMag Filter Magnet Bands

UniMag™ Filter Magnet Bands These unique special magnetic products are available from SynLube Incorporated can be used with SynLube™ MicroGlass™ Oil Filters, as well as in many other applications.


UNIMAG-filter-magnets


Product Description

The magnets used in UNIMAG™ are special formulation of Neodymium (the Rare Earth element), Iron, and Boron. These Patented Super Magnets are 10 times stronger than ordinary Ceramic magnets and do not lose their magnetic charge with time or when exposed to heat.

Each unit consists of several independent hard chromium coated magnets that are of opposite N/S orientation. Through its strong magnetic force UNIMAG™ attracts and removes from fluid flow ferromagnetic particles that are too small to be captured by conventional filter media.

Oil filters alone cannot trap these microscopic particles, because conventional cellulose oil filters are designed to capture particles in 60 to 20 micron range.

While SynLube™ Lube−4−Life® Oil Filters with MicroGlass™ fiber elements will filter down to 5 micron particle range. Still particles smaller than 5 micron and as large as 10 micron will remain in circulation and can cause a secondary wear.

Also finely distributed iron particles of sub-micronic size do act as oxidation co-catalysts and will cause the oil to deteriorate at faster rate.

Magnet Deposits

Accumulated UNIMAG™ captured deposits INSIDE of Motor Oil Filter

UNIMAG™ traps all magnetic particles of any size against the interior sidewall of the filter, this in turn extends lubricant service life and reduces wear.

UNIMAG™ SUPER-STRONG magnets never wear out or lose their magnetic charge, therefore the unit itself is permanent, you will never need to purchase another.

When replacing Oil Filter, simply remove the units and install them onto a new filter.

UNIMAG™ magnet bands are available in various lengths to fit standard oil filter sizes, they can also be used on Fuel Filters, Coolant Filters on Heavy Duty Engines, Transmission Pans, Differential Covers, as well as in may other applications.



See PRICE LIST for currently available sizes and pricing.

Price List

ALL Prices include FREE shipping by FedEx Ground or Priority Mail SynKits are now supplied with appropriate UNIMAG™ to fit the correct oil filter for your vehicle application.
You will still receive the 10% SynKit discount and FREE shipping by FedEx Ground Service.
